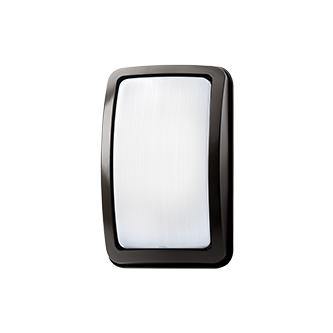

SWP610 Sconce

6”x10” Swoop LED Fixture is Uniquely Designed to Provide an Architectural Vandal Resistant Solution. Standard LED, Amber or High Output.

by Luminaire LED

Swoop SWP610 brings an architectural feel to a robust vandal resistant 4” inch deep rectangular fixture. It features a durable, color-impregnated, polycarbonate housing supported by a marine grade, die cast aluminum base plate to provide a lighting fixture that will survive in any challenging environment. Its curved lens is made from a one-piece injection molded UV stabilized prismatic polycarbonate with minimum 0.140” wall thickness. SWP610 can be mounted vertically or horizontally and is available in 2700K, 3000K, 3500K, 4000K, and 5000K CCT with 82 CRI.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Specifications

    Brand Luminaire LED
    Application Type Behavioral Health, Education
    Correlated Color Temperature 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Amber Limited Wavelength
    Color Rendering Index 82
    Fixture Wattage 15, 20, 5
    Light Source LED - Static
    Regulatory Listing UL
    Lumen Output 200 LM, 800 LM, 900 LM, 1600 LM, 2000 LM
    Product Type Sconce
    Series SWP610, SWP610HO
    Shape Curved
    Voltage Rating 120, 120-277, 277
