SMQ-11_5
SMQ11_2078 Main.png

SMQ Confinement Surface Mount

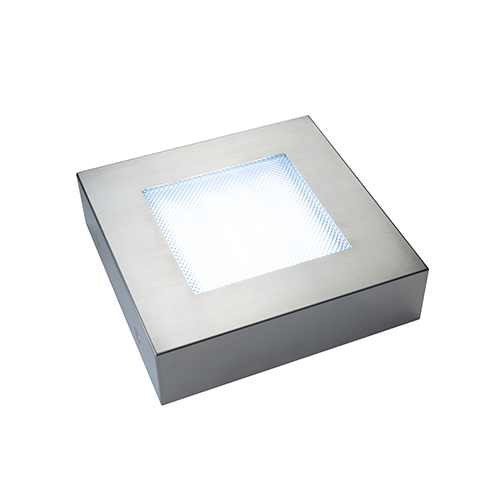

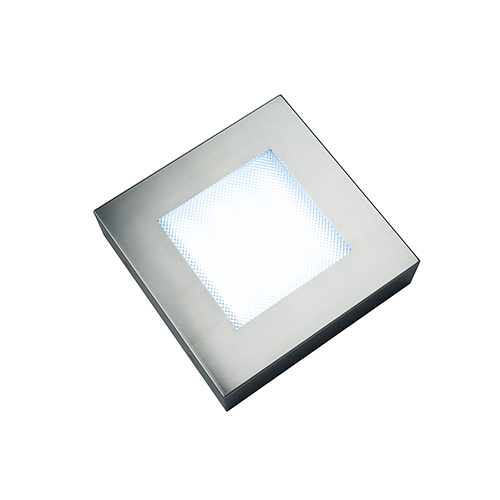

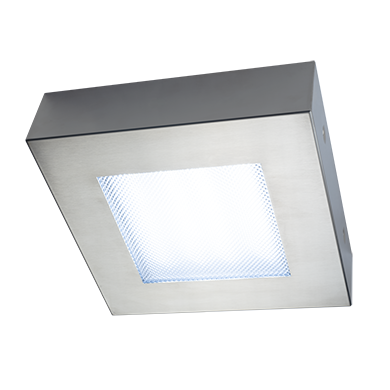

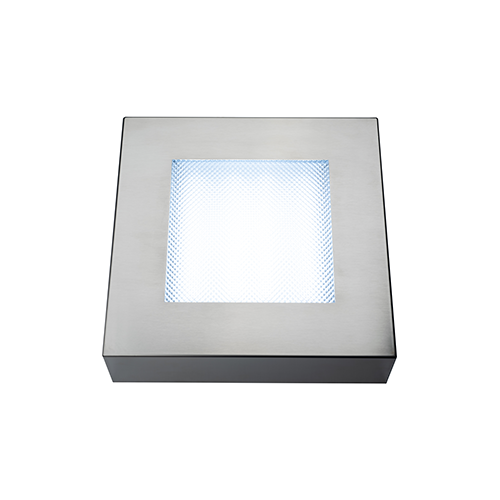

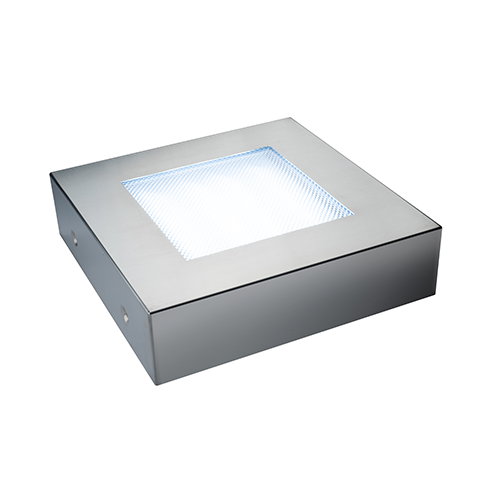

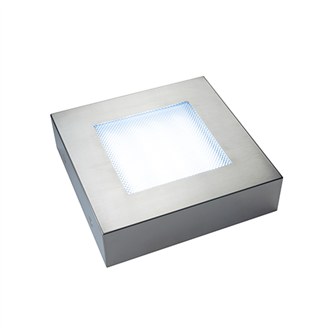

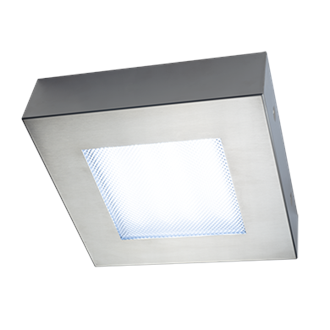

Super Max LED SMQ Series, 13" x 13" Square Surface Mount Fixture.

by Luminaire LED

Super Max SMQ is a square surface mount confinement luminaire. It is ideally suited for behavioral institutions and correctional facilities. Available options provide suitability for minimum to maximum security locations. Various materials and lumen outputs are available to satisfy nearly any conceivable institutional requirement. It is constructed with a one piece die formed housing in stainless or cold rolled steels and all corners and seams continuously welded smooth. Its hinge design protects from unauthorized fixture entry. It is available in 2700K, 3000K, 3500K, 4000K, and 5000K CCT.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Luminaire LED
    Application Type Behavioral Health, Confinement
    CCT 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
    CRI 82
    Fixture Wattage 15, 25
    Light Source LED - Static
    Regulatory Listing UL
    Compliance Listing BAA
    Environmental Listing Wet Location
    Lumen Output 1200 LM, 2100 LM
    Product Type Confinement
    Series SMQ
    Shape Square
    Voltage Rating 120, 120-277, 277
