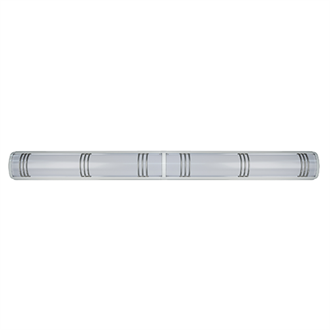

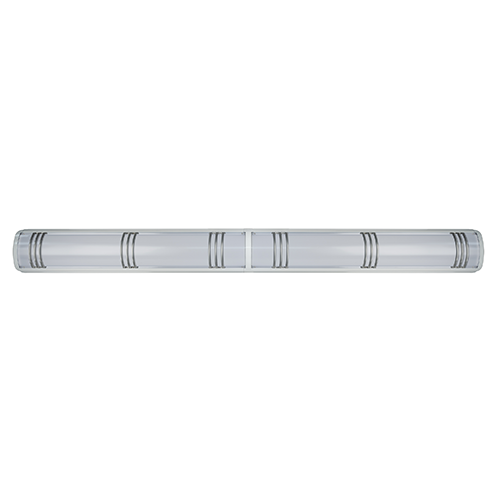

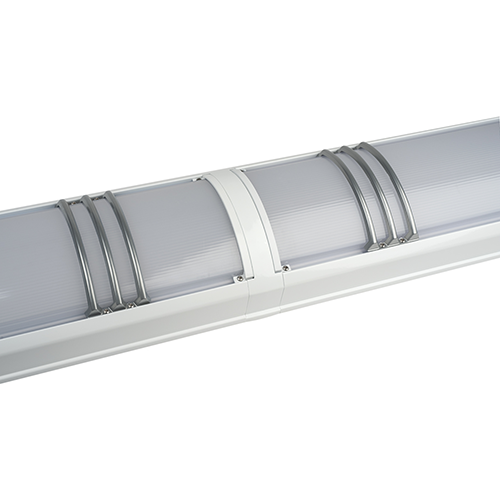

SPC8L Linear, Continuous Run

8" Wide Sonar Vandal Resistant LED Fixture for Linear Runs. Ceiling, Pendant or Wall Mount.

by Luminaire LED

The Sonar SPC8L series offers architectural flexibility while maintaining maximum vandal resistance. A wide variety of grill configurations and colors are available, which can be combined for linear runs. The all aluminum body construction enables the SPC8L to be used in any environment. The SPC8L fixture is available in 2700K, 3000K, 3500K, 4000K, 5000K. Optional Microwave or Bluetooth connected occupancy sensors can be mounted discreetly behind the lens for a clean fixture appearance. Natatorium finish is standard for the SPC8L.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Luminaire LED
    Application Type Education, Natatorium, Sports and Recreation, Transportation
    CCT 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
    CRI 82
    Fixture Wattage 100, 15, 20, 25, 40, 50, 70
    Light Source LED - Static
    Regulatory Listing UL
    Compliance Listing BAA
    Environmental Listing Wet Location
    Lumen Output 1400 LM, 2100 LM, 3000 LM, 4100 LM, 5200 LM, 5700 LM, 8000 LM, 11,000 LM
    Product Type Linear
    Series SPC8L
    Shape Rectangular
    Voltage Rating 120, 120-277, 277, 347
