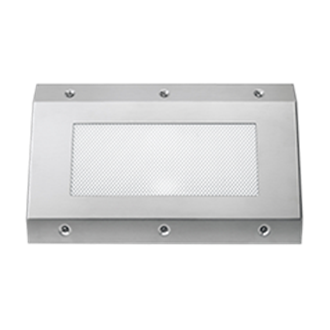

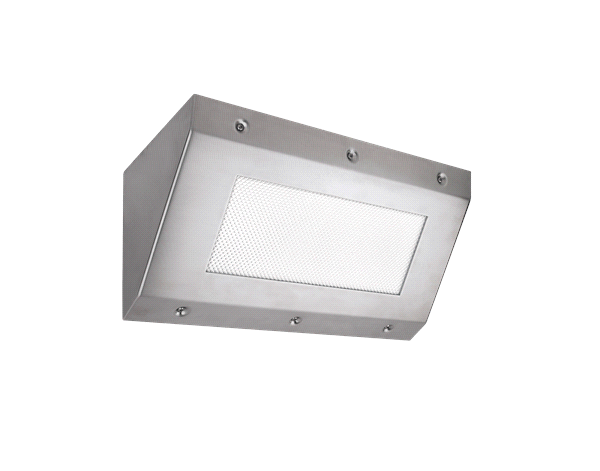

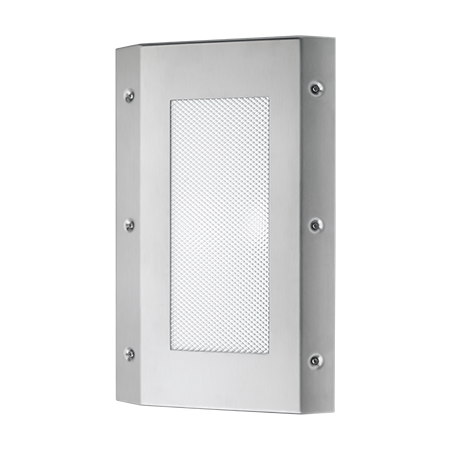

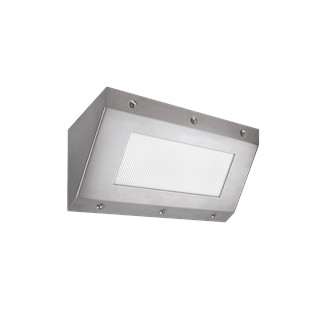

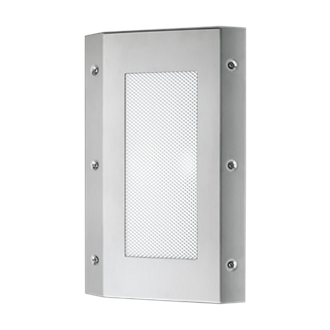

CMP Confinement Corner Mount

Super Max LED CMP Series, 9" Wide Corner Mount Fixture is Available in Three Lengths.

by Luminaire LED

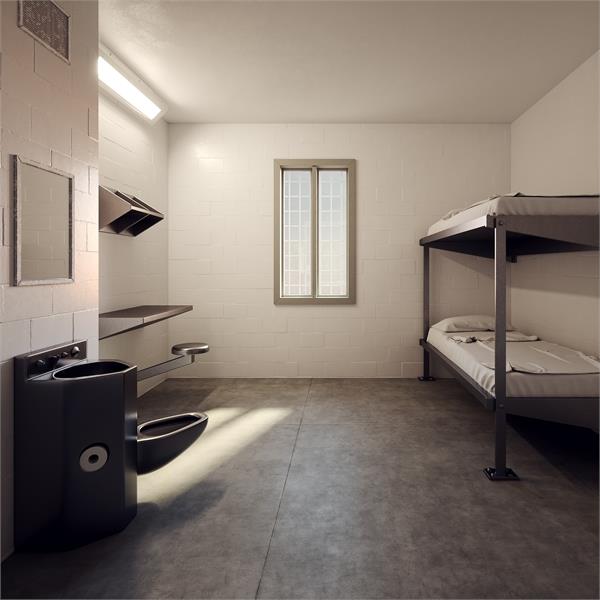

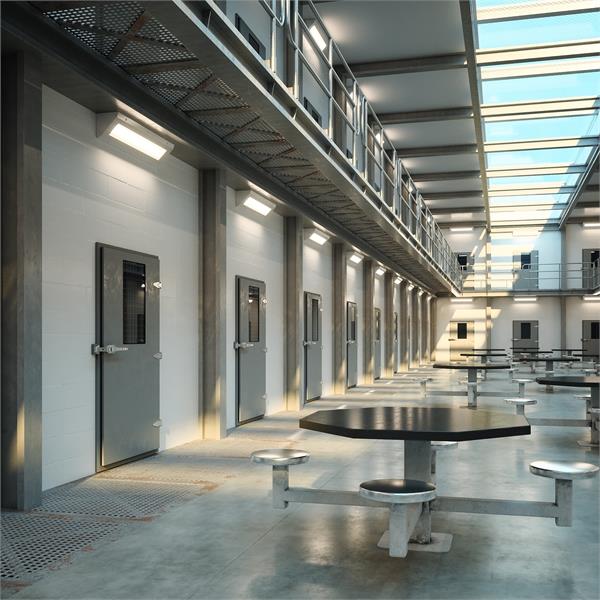

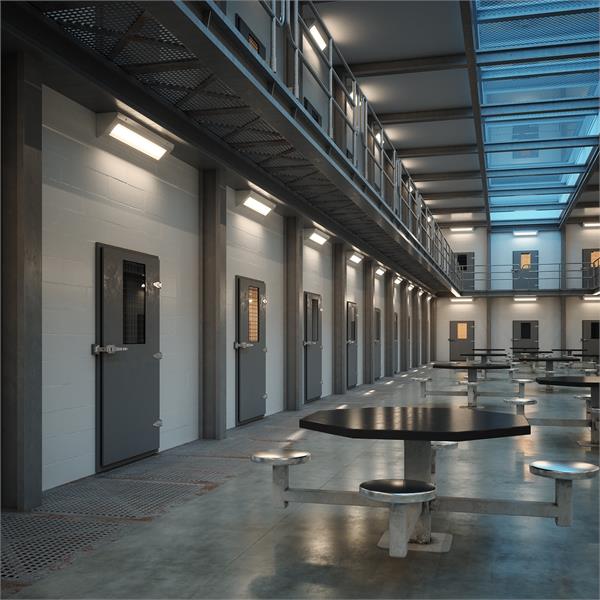

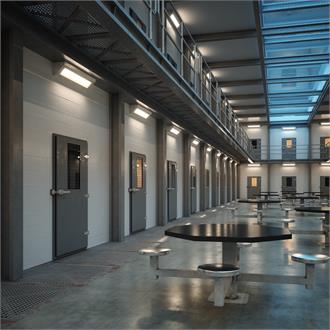

The Super Max CMP is a corner mount luminaire ideally suited for behavioral institutions and correctional facilities. The CMP is manufactured with a one piece die formed housing, available in stainless or cold rolled steels and all corners and seams are continuously welded smooth. Its hinge design protects from unauthorized fixture entry and options provide suitability for minimum to maximum security locations. A ligature resistant design is standard for all variations of the CMP series. Various materials and lumen outputs are available to satisfy almost any conceivable institutional requirement. It is available in 2700K, 3000K, 3500K, 4000K, and 5000K CCT with optional single-frequency Amber LED nightlights.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Luminaire LED
    Application Type Behavioral Health, Confinement
    CCT 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
    CRI 82
    Fixture Wattage 25, 50, 80
    Light Source LED - Static
    Regulatory Listing UL
    Compliance Listing BAA
    Environmental Listing Wet Location
    Lumen Output 1800 LM, 4200 LM, 5900 LM
    Product Type Confinement
    Series CMP
    Shape Rectangular
    Voltage Rating 120, 120-277, 277, 347
