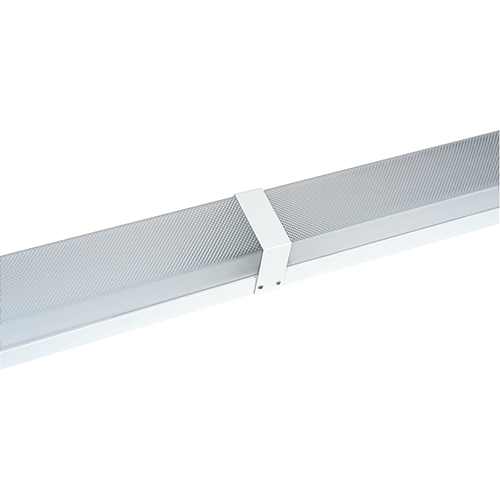

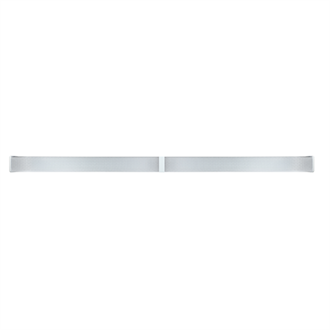

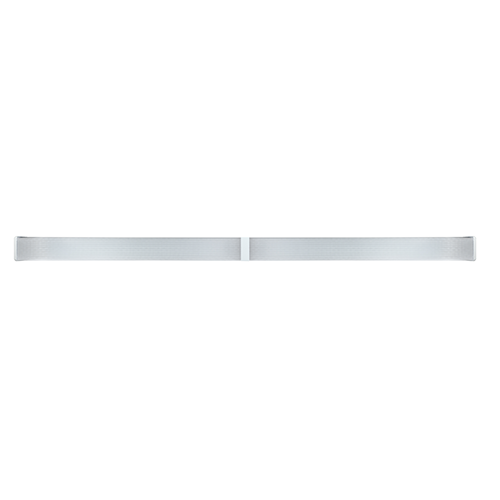

LVP524L Linear, Continuous Run

4" Wide Judge Vandal Resistant LED Fixture for Linear Runs. Wall or Ceiling Mount.

by Luminaire LED

Judge LVP524L is a linear fixture for continuous runs that provides vandal resistant construction at a cost-effective price point. The minimalist construction features die formed 16-gauge cold rolled zinc coated steel and is finished with electrostatically applied polyester powder coat. Wall or ceiling mounted, the LVP524L comes with a lifetime warranty against vandalism and has been proven in thousands of installations over decades of use. It is available in three lengths and in 2700K, 3000K, 3500K, 4000K, and 5000K CCT with 82 CRI.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Luminaire LED
    Application Type Education, Healthcare, Sports and Recreation, Transportation
    CCT 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
    CRI 82
    Fixture Wattage 15, 20, 25, 40, 50
    Light Source LED - Static
    Regulatory Listing UL
    Environmental Listing Wet Location
    Lumen Output 1500 LM, 2300 LM, 3000 LM, 3100 LM, 4600 LM, 6000 LM
    Product Type Linear
    Series LVP524L
    Shape Rectangular
    Voltage Rating 120, 120-277, 277, 347
